MSG develops pioneering automotive solutions for the mobility of tomorrow. With our pioneering innovations and precise mechatronic details, we create the decisive difference that redefines the future of the automotive industry.
Turning
Individual solutions for small to large series with maximum precision

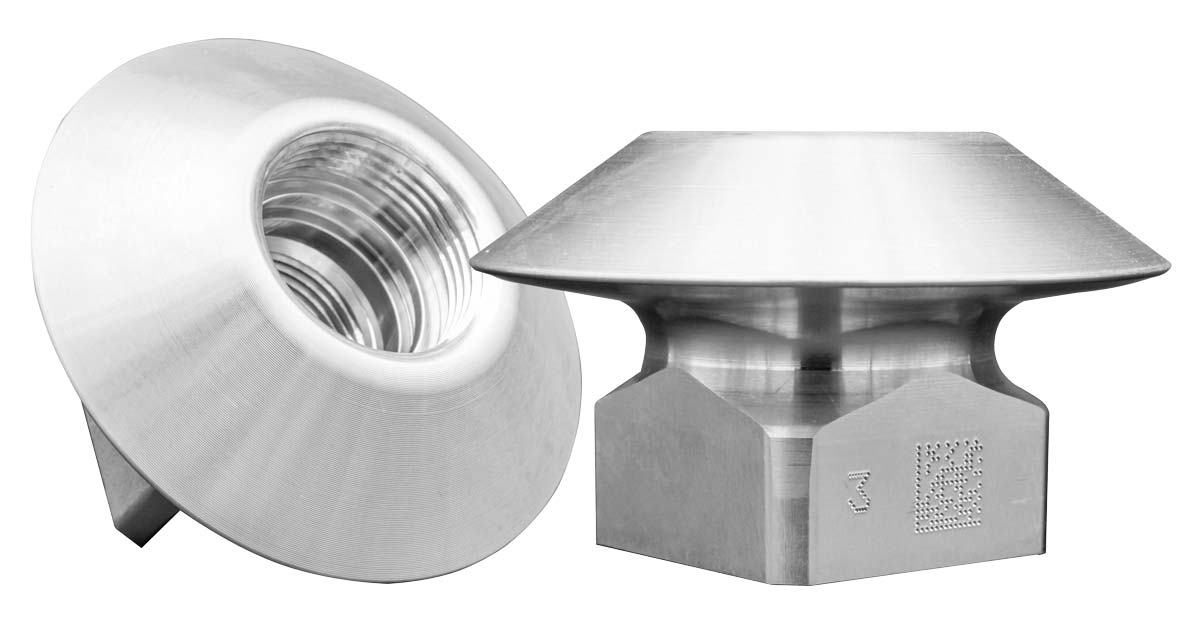

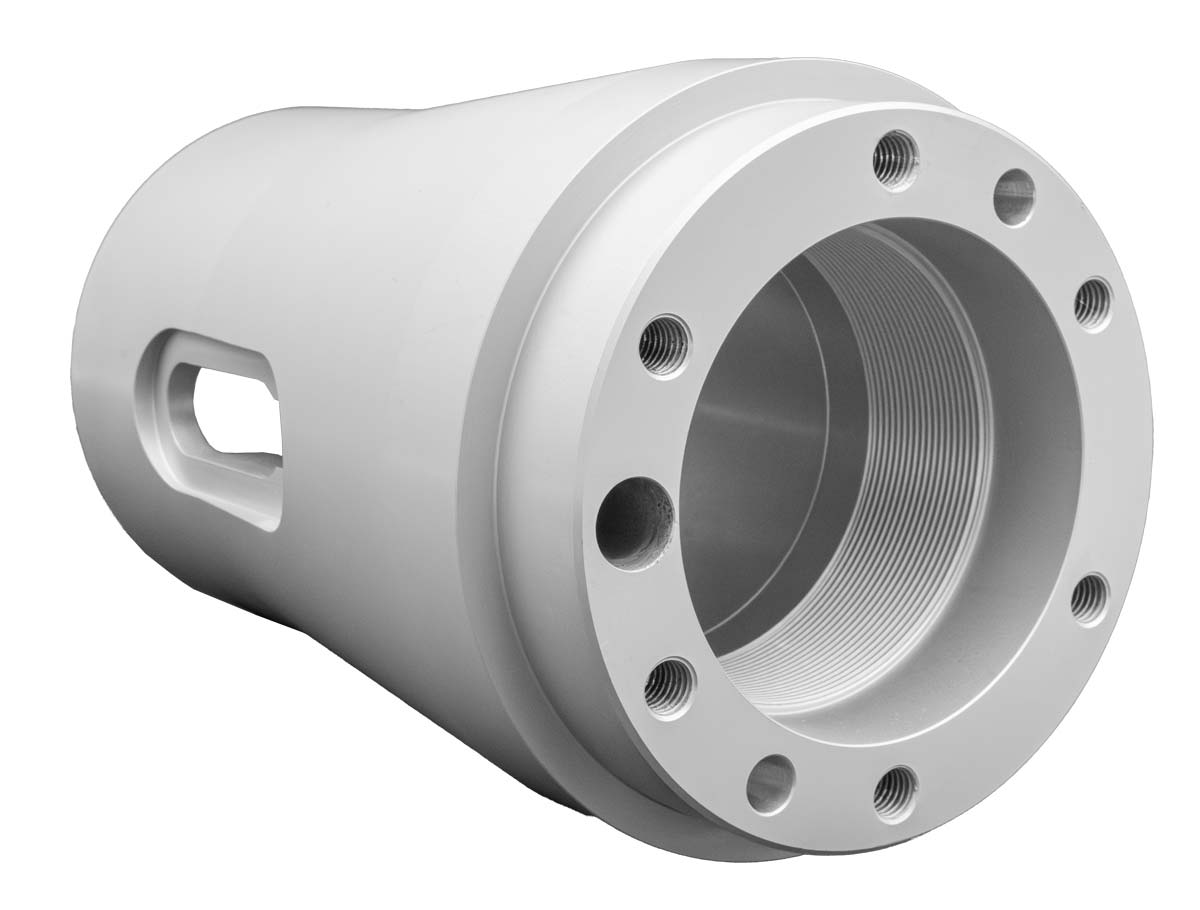

- Complex turned parts
- 3-turret turning and milling
- Powered tools
- Synchronous turning
- Bar loader up to 3 m
Key facts
Anodizing with pre-mounted fit
Key facts
Machine deburring of milling contours
Key facts
Individual saw threads
Key facts
Thin-walled knurl production
Milling
Customized solutions for prototypes and small series of the highest precision

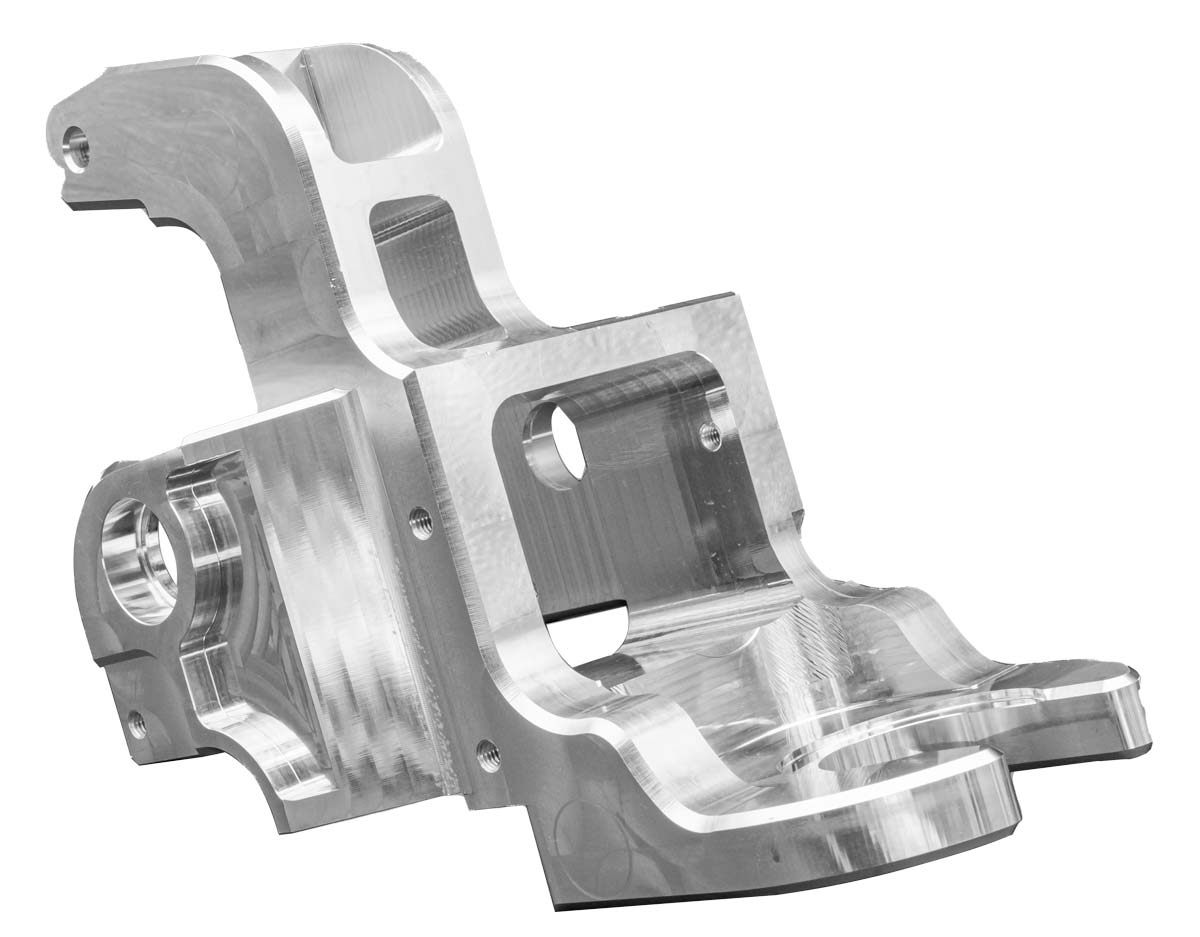

- Complex milled parts
- 5-axis simultaneous machining

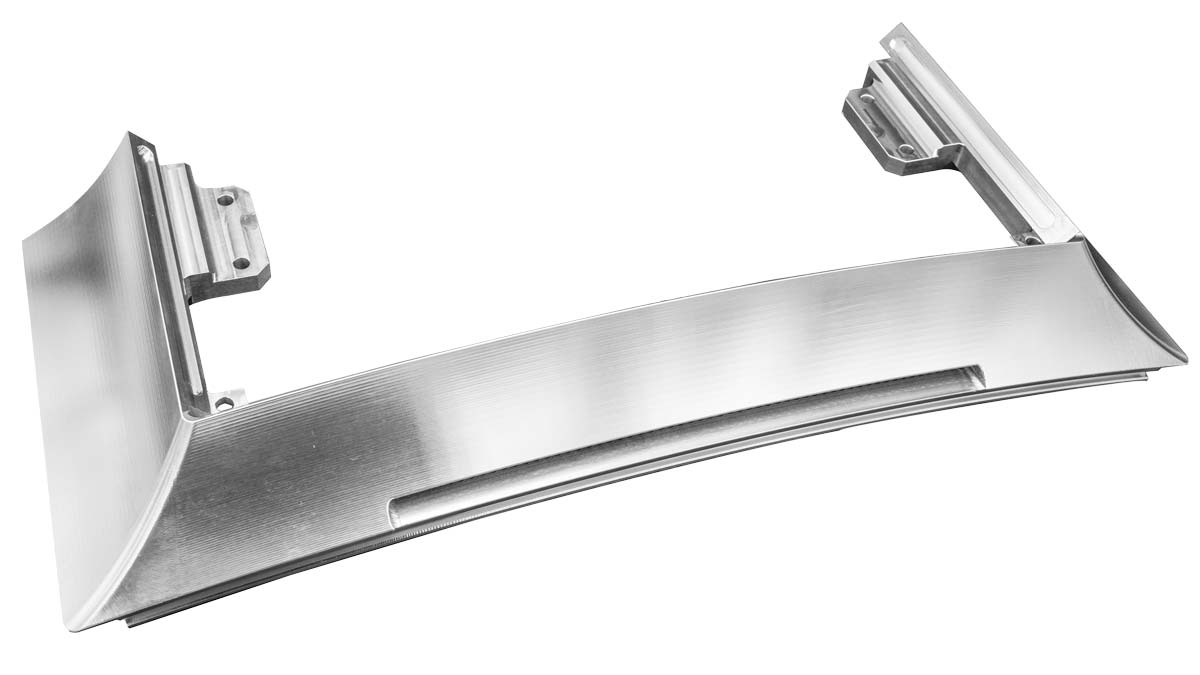

- Freeform surfaces
- Surface reconstruction and 3D coordinate measuring machine with scanning function
Key facts
Cylindricity of bores 50 µm
Key facts
High-precision 5-axis machining
Key facts
Complex simultaneous milling according to 3D model
Key facts
Manufacturing using a clamping fixture with mirrored contours
Measuring technology
Zero-Defect: Measurement technology in air-conditioned production and test rooms
- State of the art measuring equipment
- 3D coordinate measuring technology with scanning function
- Highest quality through cleanliness and constant production conditions
Machinery
We manufacture prototypes, small batches and medium-sized series - precisely and efficiently. With 3-turret turning/milling, driven tools, synchronous turning and a bar loading magazine up to 3 meters, we offer solutions for complex turned parts of the highest quality.
MARSURF XC2-XC20
Keyfacts
Non-destructive measurement of contours outside and inside
Traversing lenghts: up to 120 mm
Accuracy: 2,5+L/100 µm
KEYENCE IM-8000
Keyfacts
X/Y/Z: 300 mm/200 mm/85 mm
Measuring system: optical, light scanners
HEXAGON DEA GLOBAL PERFORMANCE
Keyfacts
X/Y/Z: 900 mm/2.000 mm/800 mm
Measuring system: Renishaw PH10M PLUS/SP25M
Touch and scanning mode
Area recirculation
MEP SHARK 350 CMC HS 4.0
Keyfacts
Cutting range round/square/flat: 350 mm/350 mm/350×350 mm
Blade rotation speed: variably 15 – 200 m/min.
Hydraulic overhead bundling up to 3 m
ELMAG PREMIUM CU 400RD
Keyfacts
Max. turning-Ø: 400 mm
Top width: 1.500 mm
ALZMETALL GS 1000 5T
Keyfacts
Travel 5-axis simultaneous X/Y/Z: 800 mm/800 mm/600 mm
Speed range max.: 24.000 rpm
150 tool positions
Tool measurement by laser
3D measuring probe
ALZMETALL GS 1000 5T
Keyfacts
Travel 5-axis simultaneous X/Y/Z: 800 mm/800 mm/600 mm
Speed range max.: 18.000 rpm
66 tool positions
Tool measurement by laser
3D measuring probe
ALZMETALL GS 1000 5
Keyfacts
Travel 5-axis X/Y/Z: 800 mm/800 mm/600 mm
Speed range max.: 18.000 rpm
40 tool positions
Tool measurement by laser
3D measuring probe
ALZMETALL CS 1200
Keyfacts
Travel X/Y/Z: 1.200 mm/600 mm/785 mm
Speed range: 200 to 13.000 rpm
40 tool positions
Infrared measuring probe
STAR SB-20R-G
Keyfacts
Bar diameter: max. 20 mm
Main spindle speed: max. 8.000 rpm
Counter spindle speed: max. 9.000 rpm
Accessories: 3 m bar loader & 70 bar coolant pump
STAR SR-32JII-B
Keyfacts
Bar diameter: max. 32 mm
Main spindle speed: max. 8.000 rpm
Counter spindle speed: max. 8.000 rpm
Accessories: 3 m bar loader & 70 bar coolant pump
EMCO HYPERTURN 45-G3
Keyfacts
Spindles max. speed: 7.000 rpm
Bar diameter: 45 mm
Max. turning-Ø: 300 mm
Max. bar length: 500 mm
Tool turrets: 2x 16-fach BMT45 (Sauter)
Tool turret 2 speed: max. 12.000 rpm
EMCO HYPERTURN 65 TRIPLE TURN
Keyfacts
Bar diameter: 65 mm
Max. turning-Ø: 500 mm
Max. bar lenght: 1.000 mm
Tool turrets: 3x 12-fach BMT55 (Sauter)
EMCO Maxxturn 65
Keyfacts
Bar diameter: 65 mm
Max. turning-Ø: 300 mm
Swing over bed: 600 mm
Counter spindle
Driven tools
12-position tool turret VDI size 30
Emco Emcoturn E45
Keyfacts
Turning diameter: 250 mm
Bar diameter: 45 mm
Max. speed: 20 – 6.000 rpm
Swing over bed: 339 mm
12-position tool turret VDI size 30
